Single Auger Self-Propelled TMR Mixer
The SP series self-propelled TMR mixer is designed for farms that want to complete feed loading, weighing, cutting, mixing, transport, and distribution with one mobile feeding unit. By combining several daily feeding tasks into one workflow, it reduces the need for separate tractors, loaders, and trailed mixers, helping farms save labor, lower maintenance costs, and improve feeding efficiency.
The single vertical auger cuts and mixes both roughage and concentrates, making the system suitable for farms that handle silage, hay, alfalfa, straw, and other long-fiber materials. This structure supports fast ingredient circulation and uniform TMR preparation, helping deliver a softer, more palatable ration for better feed intake.
In addition to our diesel self-propelled TMR mixers, we can also supply electric versions which significantly reduce energy costs with zero noise and zero emissions, embracing the future of green agriculture.
| Model | |
| Overall Dimensions (L×W×H) (mm) | 8900×2800×3600 |
| Machine Weight (kg) | 15000 |
| Working Speed (km/h) | 3 - 35 |
| Feed Width (m) | 2 |
| Hydraulic Motor (kW) | 90 |
| Agitator Motor (kW) | 75 |
| Battery (kW/h) | 423.9 |
| Auger Speed (r/min) | 32 |
| Knife Material | 65Mn, Tungsten Carbide Coating |
| Number of Knives | 9 |
| Model | |||
| Overall Dimensions (L×W×H) (mm) | 8000×2500×2800 | 8000×2500×3000 | 8000×2500×3200 |
| Milling Head Lift Height (mm) | 4000 | 4000 | 4000 |
| Machine Weight (kg) | 10500 | 11000 | 11500 |
| Mixing Hopper Capacity (m³) | 12 | 14 | 16 |
| Number of Knives | 10 | 11 | 11 |
| Knife Material | 65Mn, Tungsten Carbide Coating | 65Mn, Tungsten Carbide Coating | 65Mn, Tungsten Carbide Coating |
| Min. Ground Clearance (mm) | 400 | 400 | 400 |
| Tire | 385/65 R22.5 | 385/65 R22.5 | 385/65 R22.5 |
| Number of Tires | 4 | 4 | 4 |
| Min. Steering Radius (mm) | 6500 | 6500 | 6500 |
| Drive & Steering | Rear-wheel drive, front-wheel steering | Rear-wheel drive, front-wheel steering | Rear-wheel drive, front-wheel steering |
Note: Specifications for self-propelled TMR mixers are customizable. The above are our recommended standard parameters.

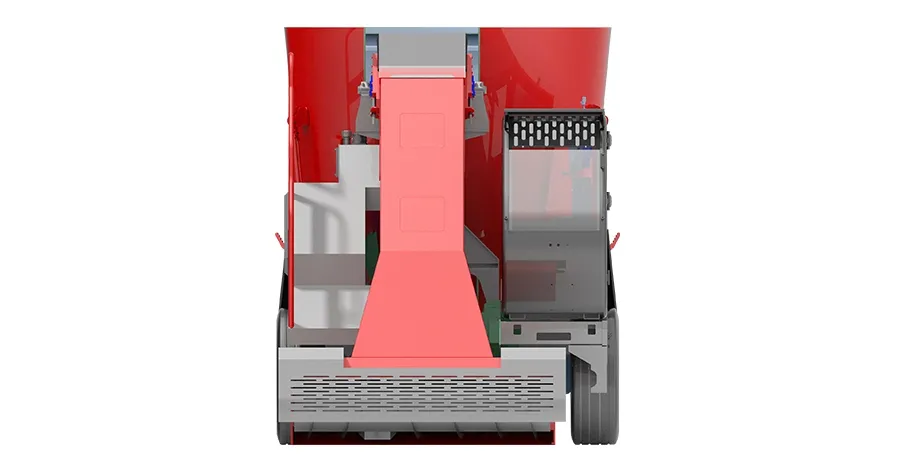

- Fast Silage Reclaiming: The milling head uses tungsten alloy cutters arranged in a spiral pattern on the drum. Driven by a high-speed hydraulic motor, it can cut compacted corn silage, long-fiber alfalfa, and dense forage materials efficiently before feeding them into the conveyor channel.
- Clean Silage Face Protection: Its cutting path keeps the silage face clean and even after reclaiming. This helps reduce air exposure, lower the risk of aerobic spoilage, and protect the quality of stored feed.

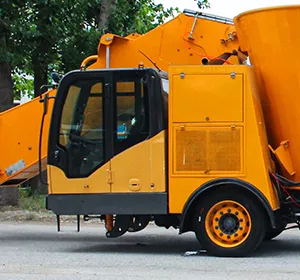

- Easy One-Hand Operation: The panoramic cab gives the operator a clear view of the working area, making daily feeding safer and easier to manage. An integrated multifunction joystick controls vehicle movement, milling arm lifting, cutter rotation, and conveyor operation from one handle, allowing faster operation with less training.
- Accurate Ingredient Monitoring: The standard Dinamica Generale (DG) weighing terminal monitors the intake of each feed ingredient in real time, with accuracy controlled within 1%. This helps farms manage ration precision, reduce ingredient waste, and keep feeding records more reliable.
- Flexible Barn Maneuvering: The reinforced chassis is built for demanding farm conditions, with high ground clearance for uneven roads and busy barn environments. An optional 4-wheel steering system provides a smaller turning radius, making the unit easier to maneuver in narrow or older barns.
- Durable TMR Mixing: The vertical auger uses 20 mm NM400 spiral blades with adjustable knives, supporting wear resistance and stable cutting performance. Under normal operating conditions, the mixing system can complete uniform TMR preparation within 15 minutes, helping farms keep feeding schedules on track.
What truly sets us apart is our focus on practical innovation and real-world reliability. At UHAND, we own and operate a 15.33-hectare (38-acre) commercial dairy farm with approximately 3,000 cattle. This farm serves as our dedicated testing platform, where every piece of our farm equipment is deployed and rigorously proven for daily operations in a live farm environment.
