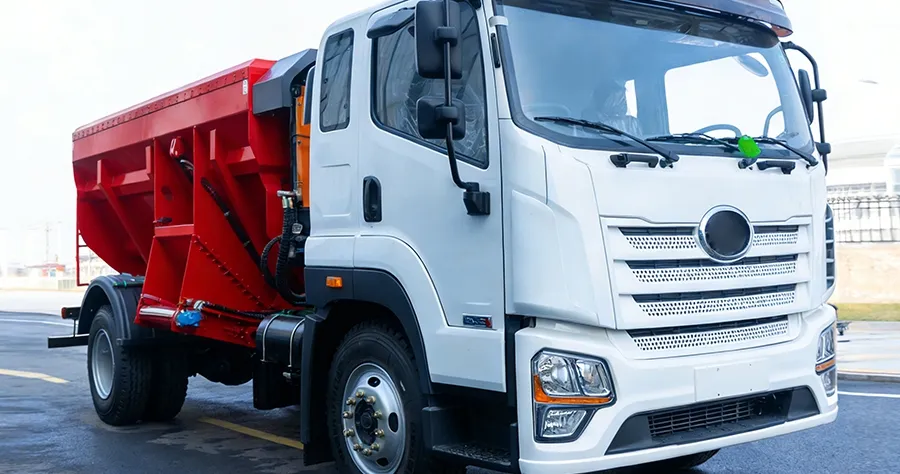

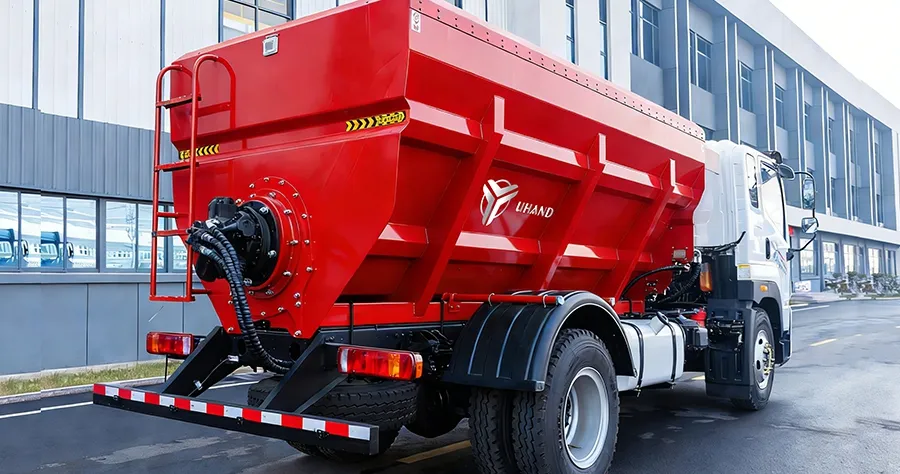

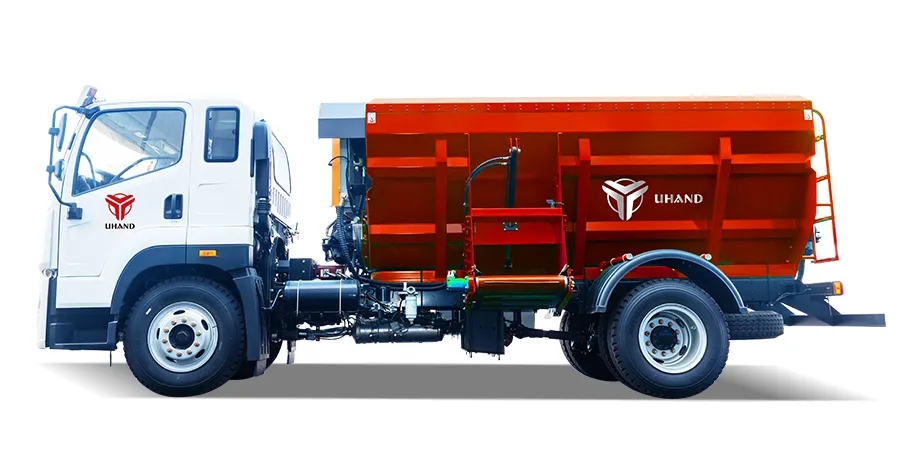

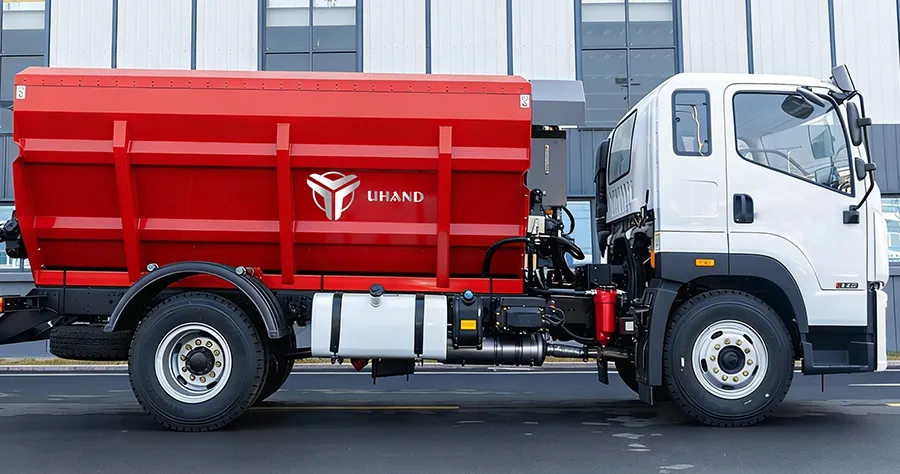

Bedding Spreader

Designed for large modern dairy farms, the BS series bedding spreader supports cleaner, more consistent, and less labor-intensive bedding management. By spreading sand, rice hulls, dry cow manure, wood chips, biogas residue, and other bedding materials evenly across cow stalls, it helps improve cow comfort, reduce uneven bedding thickness, and support better barn hygiene.
Consistent bedding distribution helps farms lower manual workload, standardize stall management, and create healthier resting conditions for dairy cows. For operations using recycled manure solids or sand bedding, this solution also supports more efficient resource use and more organized daily barn maintenance.
Plan a more consistent bedding workflow with UHAND based on your stall layout, bedding material, truck chassis, and daily barn management needs.

Product Brochure

Key Parameters

Capacity range: 6–30 m³, customizable according to truck chassis
Applicable materials: dry cow manure, wood chips, rice hulls, biogas residue, sand, and other bedding materials
Core drive: high-torque plunger motor
Spreading mechanism: spiral throwing hammer assembly
Control system: integrated cab control system

Specifications

BS Series Bedding Spreader
Model	BS-5	BS-8	BS-10	BS-12	BS-16	BS-18
Overall Dimensions (L×W×H) (mm)	4850×1800×2350	6400×2660×2450	6400×2660×2700	6400×2660×3000	7800×2700×3200	8700×2700×3200
Applicable Materials	Multi-Materials*	Sand + Multi-Materials*	Sand + Multi-Materials*	Sand + Multi-Materials*	Sand + Multi-Materials*	Sand + Multi-Materials*
Compatible Vehicle	Foton Tricycle	Kaima	Kaima	Kaima	Jiefang/Foton	Jiefang/Foton
Emission Standard	-	National V	National V	National V	National V	National V
Material Conveying Method	Chain-driven	Auger-driven	Auger-driven	Auger-driven	Auger-driven	Auger-driven
Auger Quantity	-	1	1	1	1	1
Hydraulic Control Mode	Manual Handle	Electric Switch Handle	Electric Switch Handle	Electric Switch Handle	Electric Switch Handle	Electric Switch Handle
Engine Power (HP)	28	115	115	115	140	180
Speed Range (km/h)	3-40	3-60	3-60	3-60	3-60	3-60
Max. Load Capacity (kg)	2000	8000	8000	8000	10000	15000
Spreading Method	Belt-driven	Hammer-driven	Hammer-driven	Hammer-driven	Hammer-driven	Hammer-driven
Hammer Quantity	-	18	18	18	18	18
Adjustable Spreading Distance (m)	0.5-1.5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5
Braking System	Hydraulic Brake	Pneumatic Assisted Brake	Pneumatic Assisted Brake	Pneumatic Assisted Brake	Pneumatic Assisted Brake	Pneumatic Assisted Brake

Model	BS-20	BS-22	BS-30	BS-S8	BS-S10	BS-S12
Overall Dimensions (L×W×H) (mm)	9100×3000×3150	9100×3000×3300	10300×2850×3500	7400×2850×2700	7600×2850×2750	7600×2850×3000
Applicable Materials	Sand + Multi-Materials*	Sand + Multi-Materials*	Sand + Multi-Materials*	Sand only	Sand only	Sand only
Compatible Vehicle	Jiefang/Foton	Jiefang/Foton	Jiefang/Foton	Jiefang/Foton	Jiefang/Foton	Jiefang/Foton
Emission Standard	National V	National V	National V	National V	National V	National V
Material Conveying Method	Auger-driven	Auger-driven	Auger-driven	Auger-driven	Auger-driven	Auger-driven
Auger Quantity	1	1	1	1	1	1
Hydraulic Control Mode	Electric Switch Handle	Electric Switch Handle	Electric Switch Handle	Electric Switch Handle	Electric Switch Handle	Electric Switch Handle
Engine Power (HP)	180	180	210	210	210	210
Speed Range (km/h)	3-60	3-60	3-60	3-60	3-60	3-60
Max. Load Capacity (kg)	15000	15000	20000	20000	20000	20000
Spreading Method	Hammer-driven	Hammer-driven	Hammer-driven	Hammer-driven	Hammer-driven	Hammer-driven
Hammer Quantity	18	18	18	18	18	18
Adjustable Spreading Distance (m)	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5
Braking System	Pneumatic Assisted Brake	Pneumatic Assisted Brake	Pneumatic Assisted Brake	Pneumatic Assisted Brake	Pneumatic Assisted Brake	Pneumatic Assisted Brake

*Multi-Materials include: Dry cow manure, wood chips, rice hulls, biogas residue
* Product images & specs are for illustrative purposes only. Minor variations (due to production batches or upgrades) may occur, with no impact on core functions. Actual product shall prevail. For inquiries, contact our sales team.

Product Advantages & Details

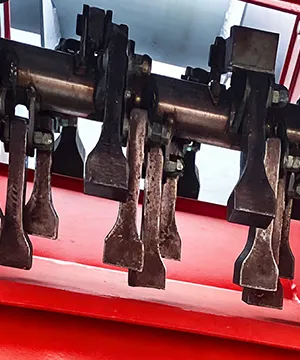

Spiral Throwing Hammer System

Even Bedding Coverage
The throwing hammer structure uses a spiral arrangement. During high-speed rotation, bedding material from the hopper is spread evenly to the target area, helping avoid buildup, empty spots, and inconsistent stall coverage.

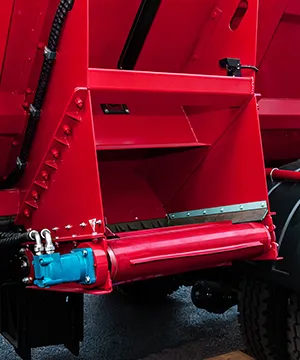

Adjustable Spreading Distance
The spreading distance can be controlled by adjusting the discharge gate opening. This makes it easier to match different stall widths and bedding thickness requirements.

Heavy-Duty Power System

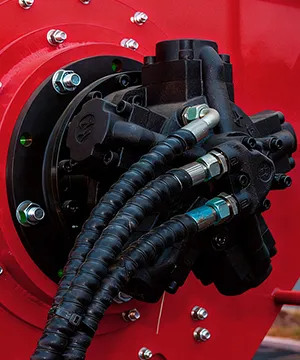

High Starting Torque

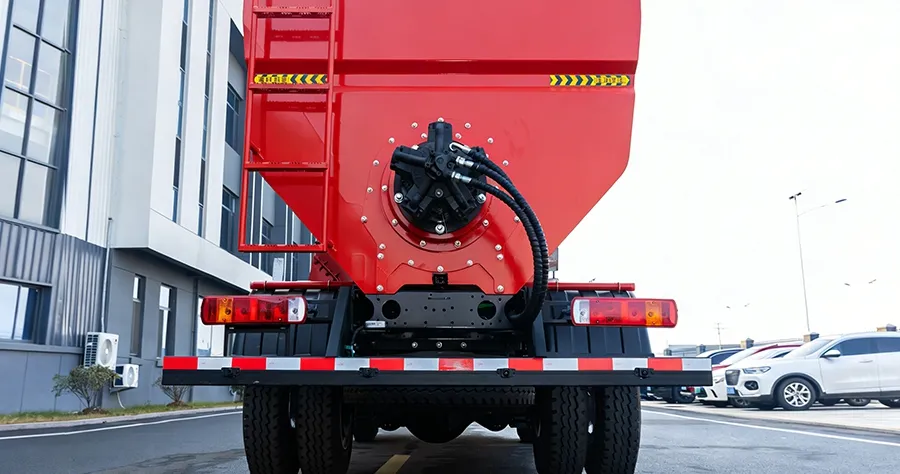

The auger drive is upgraded with a plunger motor. Compared with a standard gear motor, it provides stronger starting torque, allowing smoother startup under heavy loads such as wet sand or high-density manure.

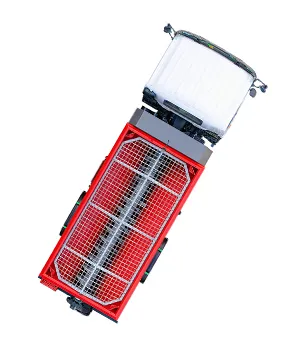

Smooth Material Feeding
The bottom feeding auger runs steadily to move material toward the spreading outlet, helping maintain continuous flow and more uniform discharge.

Robust Structure & Control

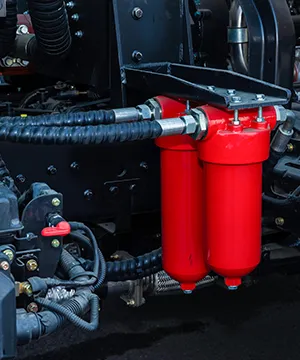

Reliable Hydraulic Protection
An independent hydraulic oil tank, radiator system, and high-pressure filter help keep the hydraulic system clean and at a suitable working temperature during long operating hours, extending component service life.

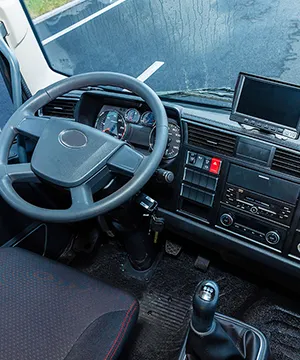

Comfortable Cab Operation
The integrated cab control system allows the driver to open and close the gate, adjust speed, and manage key functions without leaving the cab. This helps increase work efficiency while making daily bedding work easier and more comfortable.
