Manure Spreader
For livestock farms looking to turn manure into usable field fertilizer, the Manure Spreader supports efficient nutrient recycling and helps reduce waste handling pressure. By spreading fermented dry manure, diluted slurry, biogas residue, or similar organic materials evenly across farmland, it helps improve soil use, reduce manual fertilizer handling, and support circular agriculture.
Powered by a tractor, this field spreading solution uses mechanical breaking, chain-driven conveying, and controlled discharge to distribute manure or silage materials across the field. For livestock farms with crop production areas, it provides a practical way to move manure from barn waste management into productive land application.
Plan a more efficient manure-to-field workflow around your tractor power, field size, organic fertilizer volume, and application needs.
- Capacity range: 12 m³ / 18 m³
- Working dimensions: 7500×3000×2700 mm / 8500×3000×3100 mm
- Applicable materials: manure, silage, and similar materials
- Required tractor power: 110–140 HP
- Unloading method: chain-driven
- Maximum load capacity: 13,500–20,000 kg
| Model | ||
| Capacity (m³) | 12 | 18 |
| Overall Dimensions (L×W×H) (mm) | 7500×3000×2700 | 8500×3000×3100 |
| Application | Manure, silage, etc. | Manure, silage, etc. |
| Tractor HP Required | ≥100 | ≥140 |
| Unloading Method | Chain-driven | Chain-driven |
| Auger Quantity | 2 | 2 |
| Travel Speed (km/h) | 4 - 35 | 4 - 35 |
| Max. Load Capacity (kg) | 13500 | 20000 |
| Spreading Method | Paddle Auger | Paddle Auger |
| Spreading Distance (mm) | 12000-18000 | 12000-18000 |
| Tire Size & Quantity | 600/55-R26.5 × 2 | 710/50-26.5 × 2 |
| Braking System | Pneumatic | Pneumatic |
* Product images & specs are for illustrative purposes only. Minor variations (due to production batches or upgrades) may occur, with no impact on core functions. Actual product shall prevail. For inquiries, contact our sales team.

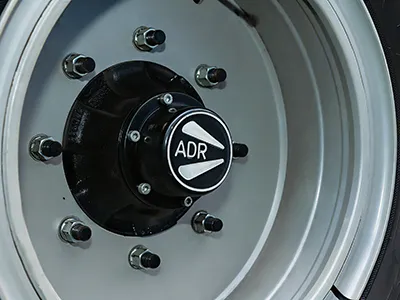

ADR Axle

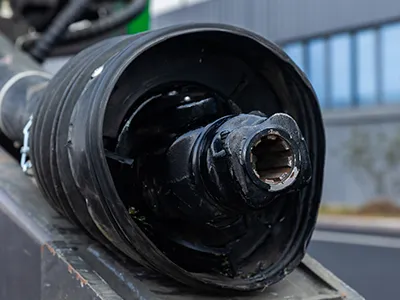

PTO Connector

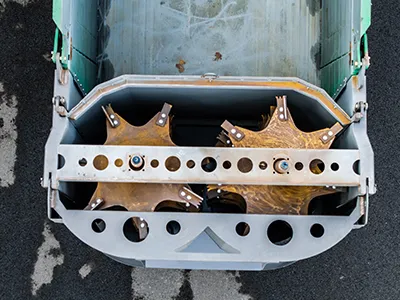

Spreading Components
- Protective Cover & Lifting Structure
Cleaner and Safer Spreading: A protective rear cover and lifting rod allow the rear cover to open or close through the hydraulic system during operation. This helps prevent fertilizer leakage, protects the spreading mechanism, and reduces transport height when the machine is not working. - Adjustable Feed Control Plate
More Precise Application Rate: An adjustable insert plate controls fertilizer discharge volume, helping farms match different crop needs, soil conditions, and application rates more accurately. - Chassis & Drawbar Design
Stable Field Transport: A high-strength chassis and drawbar structure, supported by a manual jack, provide stable tractor connection and safer movement during transport and field transfer. - Power Connection
Reliable Tractor Power Transfer: A universal joint drive shaft connects the tractor to the spreading unit, delivering the power required for the full machine operation. - Drawbar
Secure Towing Connection: The drawbar connects to the tractor’s rear hitch through the tractor hitch pin, helping maintain secure towing during field operation and transport.
