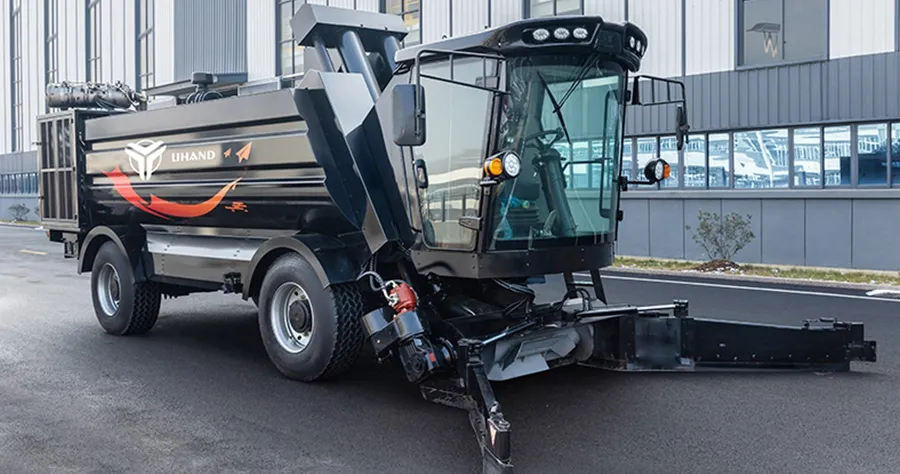

Manure Collector
Designed for modern livestock farms that need faster, cleaner, and more adaptable manure removal, the Manure Collector helps improve barn hygiene while reducing manual cleaning workload. With multiple capacity options from 5 to 15 m³, UHAND provides configurations suitable for small, medium, and large-scale farms with different cleaning frequencies, barn layouts, and ground conditions.
Reliable manure collection is essential for reducing odor, improving animal living conditions, and keeping farm passages safer for daily operations. By combining strong traction, flexible steering, and efficient material collection, this solution supports cleaner barns, smoother workflows, and more consistent manure handling across different farm environments. Build a cleaner and more efficient manure collection workflow around your barn layout, ground conditions, cleaning frequency, and farm scale.
- Capacity range: 5–15 m³
- Working dimensions: 5500×4100×2400 mm to 8390×2530×3250 mm
- Travel dimensions: 4500×2050×2700 mm to 8390×2530×3700 mm
- Collection width: 1900–4200 mm
- Engine power: 110.3–206 kW
- Unloading methods: hydraulic dump unloading or auger discharge
| Manure Collector, 5 to 6m³ | ||
| Model | ||
| Working Dimensions (L×W×H) (mm) | 5500×4100×2400 | 5700×4100×2400 |
| Travel Dimensions (L×W×H) (mm) | 4500×2050×2700 | 4700×2350×2700 |
| Curb Weight (kg) | 4200 | 4500 |
| Actual Payload (kg) | 5000 | 6000 |
| Effective Tank Volume (m³) | 5 | 6 |
| Collection Width (m) | 1.9 | 1.9 |
| Auger Ground Clearance (mm) | 300 | 300 |
| Engine Power (kW) | 91.3 | 91.3 |
| Emission Standard | National IV | National IV |
| Fuel Tank Capacity (L) | 120 | 120 |
| Unloading Method | Hydraulic cylinder lifting | Hydraulic cylinder lifting |
| Discharge Rate (m³/min) | 5 | 6 |
* Product images & specs are for illustrative purposes only. Minor variations (due to production batches or upgrades) may occur, with no impact on core functions. Actual product shall prevail. For inquiries, contact our sales team.
| Manure Collector, 8-12 m³ | |||
| Model | |||
| Effective Tank Volume (m³) | 8 | 10 | 12 |
| Working Dimensions (L×W×H) (mm) | 6500×2600×2900 | 6800×2600×3000 | 6800×2600×3200 |
| Travel Dimensions (L×W×H) (mm) | 6350×2600×3260 | 6650×2600×3360 | 6650×2600×3560 |
| Working Speed (km/h) | 1.5-20 | 1.5-20 | 1.5-20 |
| Collection Width (mm) | 1750-4200 | 1750-4200 | 1750-4200 |
| Collection Speed (km/h) | 1.5-8 | 1.5-8 | 1.5-8 |
| Engine Power (kW) | 110.3 | 110.3 | 110.3 |
| Emission Standard | National IV | National IV | National IV |
| Thickness of Tank Base/Sidewall (mm) | 6/3 | 6/3 | 6/3 |
| Tire | 315-60-R22.5 | 315-60-R22.5 | 315-60-R22.5 |
| Wheel Configuration | Front 2/Rear 2 | Front 2/Rear 2 | Front 2/Rear 2 |
| Unloading Method | Hydraulic Lifting | Hydraulic Lifting | Hydraulic Lift |
* Product images & specs are for illustrative purposes only. Minor variations (due to production batches or upgrades) may occur, with no impact on core functions. Actual product shall prevail. For inquiries, contact our sales team.
| Manure Collector, 15m³ | |
| Model | |
| Effective Tank Volume (m³) | 15 |
| Working Dimensions (L×W×H) (mm) | 8390×2530×3250 |
| Travel Dimensions (L×W×H) (mm) | 8390×2530×3700 |
| Total Weight (t) | 16.5 |
| Engine Power (kW) | 206 |
| Engine Brand | Yuchai |
| Emission Standard | National IV |
| Drive Mode | 4WD |
| Cleaning Efficiency (m³/h) | ≥50 |
| Collection Method | V-Type Foldable Scraper |
| Unloading Method | Auger Discharge |
| Travel Speed (km/h) | 20 |
* Product images & specs are for illustrative purposes only. Minor variations (due to production batches or upgrades) may occur, with no impact on core functions. Actual product shall prevail. For inquiries, contact our sales team.

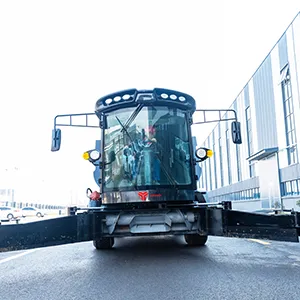

Collection Head

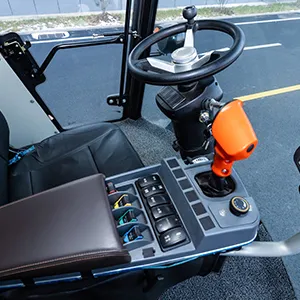

Cab Control System

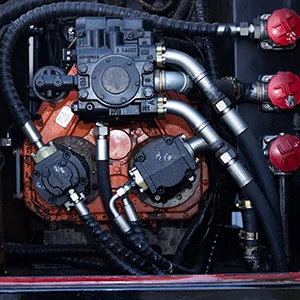

Transfer Case & Hydraulic Pump Assembly
Front Headlights

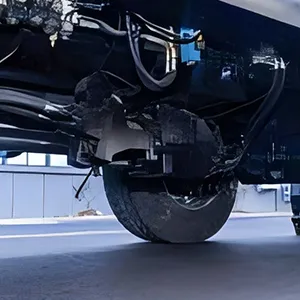

Hydraulic Motor & Gearbox System
- Strong Mechanical Drive
A transfer case and dual drive shaft structure distribute engine power to the front and rear axles at a 1:1 ratio. This provides consistent torque output, stronger traction, and better passability on wet, slippery, or manure-covered surfaces. - Flexible Steering Modes
Coordinated steering and rear axle lock modes help operators adapt to different working spaces. Coordinated steering allows synchronized front and rear axle movement for diagonal positioning in narrow passages, while rear axle lock restores front-wheel steering for open areas. Mode switching can be controlled through the LCD display, improving maneuverability and ease of operation.

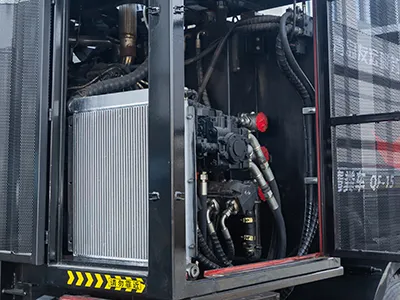

Efficient Feeding Technology
Faster Manure Transfer: A large-capacity hopper and chassis-integrated collection system increase the amount of material handled in each pass. Dual augers inside the auger chamber accelerate manure transfer into the tank, helping improve overall cleaning speed.

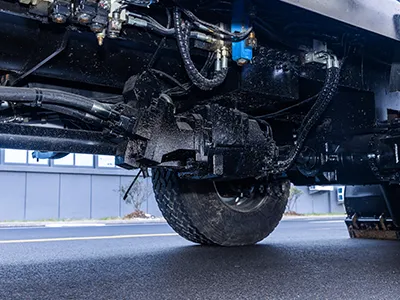

Adaptive Terrain Adjustment
Cleaner Ground Contact: The collection head can automatically adjust its angle to stay close to the ground. As the tank becomes heavier during collection, the system adapts to changes in vehicle height, helping reduce missed areas and improve performance across different surfaces.

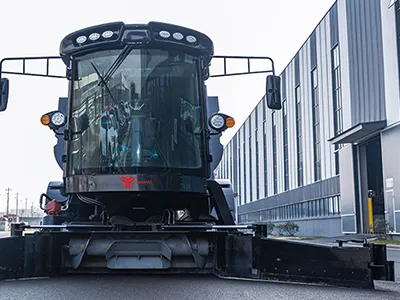

Ground Protection Buffering
Reduced Floor Damage: Strong springs are installed on the collection head slide rail to cushion downward pressure. Adjustable spring tension nuts allow operators to control pressure more precisely, helping reduce scraping, floor wear, and surface damage during cleaning.
What truly sets us apart is our focus on practical innovation and real-world reliability. At UHAND, we own and operate a 15.33-hectare (38-acre) commercial dairy farm with approximately 3,000 cattle. This farm serves as our dedicated testing platform, where every piece of our farm equipment is deployed and rigorously proven for daily operations in a live farm environment.
